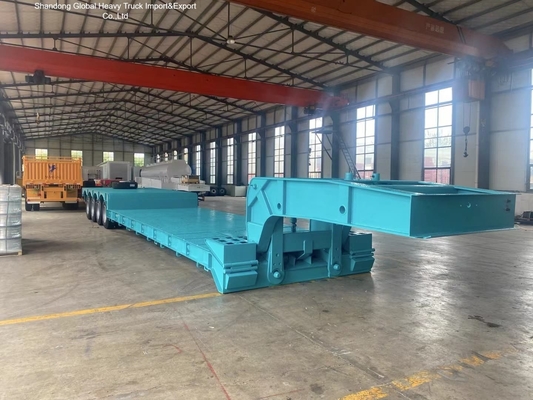

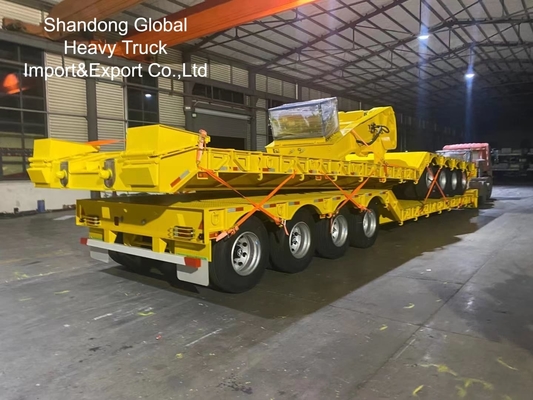

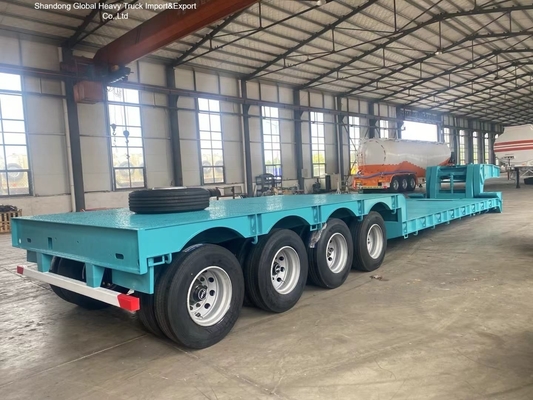

2 3 4 Axles 80t 100t 120t Lowbed Lowboy Semi Trailer with 13T or 16T FUWA/BPW Axles

Our Lowbed and Lowboy Semi Truck Trailers are engineered for extreme heavy-duty operations, transporting excavators, bulldozers, cranes, and mining machinery across challenging African terrains.

Available in 2, 3, and 4 axle configurations, these trailers offer exceptional stability, strength, and durability, meeting the growing demand in logistics, construction, and infrastructure development sectors.

Built from high-tensile Q460C / Q345B steel, the chassis ensures maximum load capacity and structural reliability under the heaviest conditions.

• Axles: 2 / 3 / 4 axles (13T or 16T FUWA/BPW optional)
• Payload Capacity: 80T / 100T / 120T
• Platform Height: 850-1300 mm
• Gooseneck: Detachable or fixed gooseneck options
• Material: High-strength steel frame, reinforced beams
• Suspension: Mechanical or air suspension (optional hydraulic system)
• Tires: 12R22.5 / 315/80R22.5 (Triangle, Linglong, or client's request)
• Brake System: WABCO dual-line air brake system
• Ramps: Heavy-duty spring or hydraulic ramps
• Dimension: 13m-18m length, customizable

• Exceptional Load Bearing: Designed to carry 80-120 tons of machinery safely.
• Reinforced Chassis: Thickened main beam and gooseneck structure prevent bending under load.
• Adaptable Design: Gooseneck type and height adjustable for various tractors and cargo types.
• Long Service Life: Anti-corrosion paint and high-tensile steel ensure longevity.
• Customized Options: Add toolboxes, spare tire carriers, or extendable decks per customer's need.
