| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | sinotruk |
| إصدار الشهادات: | iso/ccc |
| رقم الموديل: | كيفو |
| الحد الأدنى لكمية: | 1 وحدة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | ناقص |
| وقت التسليم: | 30-45 أيام العمل |
| شروط الدفع: | L/C ، T/T. |
| القدرة على العرض: | 300 وحدة/وحدة في الشهر |
| يكتب: | مقطورة قلابة | البعد العام: | 11200X2550X3500mm |
|---|---|---|---|
| إصدار الشهادات: | ECE, Gcc, CE, ISO9001, DOT, CCC, ISO/Ts16949 | مداد: | Jost 28ton عمل واحد |
| رقم المحور: | 3 محاور حسب الحاجة | مادة: | صلب صلب |
| رمز HS: | 8716100000 | ||
| إبراز: | 4 Axles Hydraulic Dump Semi Trailer,Q345B High-Tensile Steel Hydraulic Dump Semi Trailer,80-100 Tons Payload Capacity Hydraulic Dump Semi Trailer,Q345B High-Tensile Steel Hydraulic Dump Semi Trailer,80-100 Tons Payload Capacity Hydraulic Dump Semi Trailer |
||

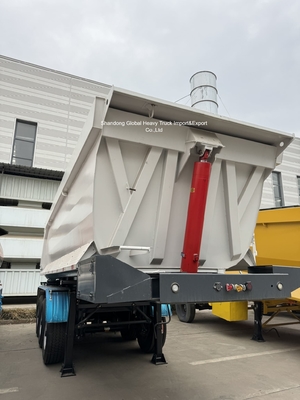

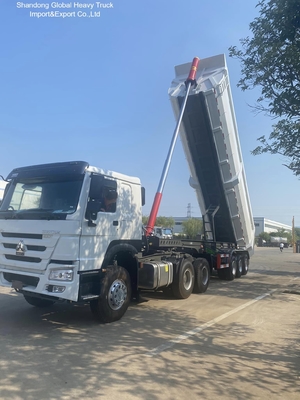

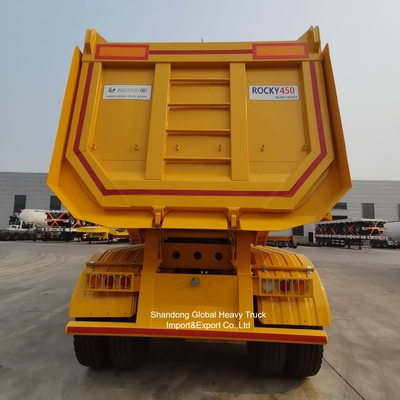

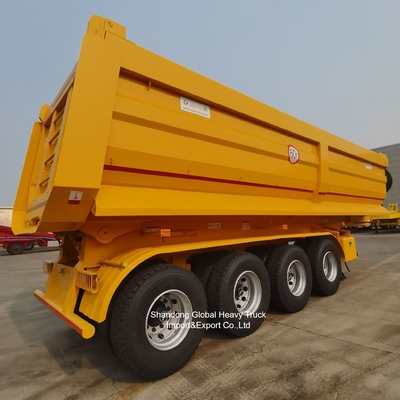

The 4 Axles Hydraulic Rear Dumper Semi Trailer is designed for bulk material transport such as sand, gravel, coal, and construction debris. Built for African mining and infrastructure projects, this trailer combines powerful hydraulic lifting, reinforced chassis, and optimized dumping structure for maximum efficiency and durability.
Each unit is engineered with high-tensile Q345B or T700 steel, ensuring excellent wear resistance and long service life, even in rough terrains and heavy-duty work environments.
| Model | 4 Axles End Dumper Semi Trailer |
| Axles | 4 x 13T or 16T FUWA / BPW brand (optional) |
| Payload Capacity | 80-100 tons |
| Body Volume | 45-60 cubic meters |
| Material | Q345B high-tensile steel, 6mm floor / 4mm side |
| Hydraulic System | HYVA or domestic brand front lifting cylinder |
| Dimension | 10.5m-11.8m × 2.5m × 3.5m (customizable) |
| Suspension | Mechanical heavy-duty spring suspension |
| Tire Options | 12R22.5 / 315/80R22.5 (Triangle, Linglong, Double Coin) |
| Brake System | WABCO dual-line air brake system |
| Kingpin | 90# / 50# interchangeable |
| Landing Gear | JOST or Fuwa brand |
| Color | Custom painting available (red, yellow, or per customer request) |
A: End tippers unload materials backward with a front hydraulic cylinder, while side tippers unload sideways for larger areas or restricted spaces.
A: Usually 45-60 seconds depending on the hydraulic cylinder and oil pump.
A: Yes, for mining or stone transport, we recommend 8mm floor + 6mm side for extra durability.
A: Around 25-30 working days after deposit confirmation.
A: Yes, it's fully compatible with HOWO, Shacman, FAW, Sinotruk, and Dongfeng tractors.
