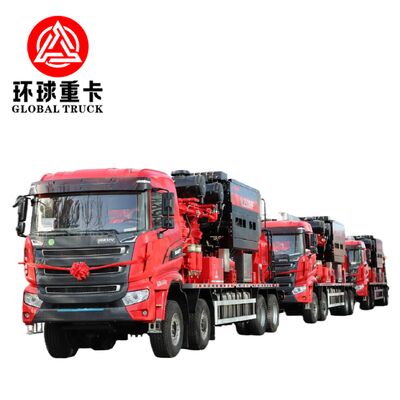

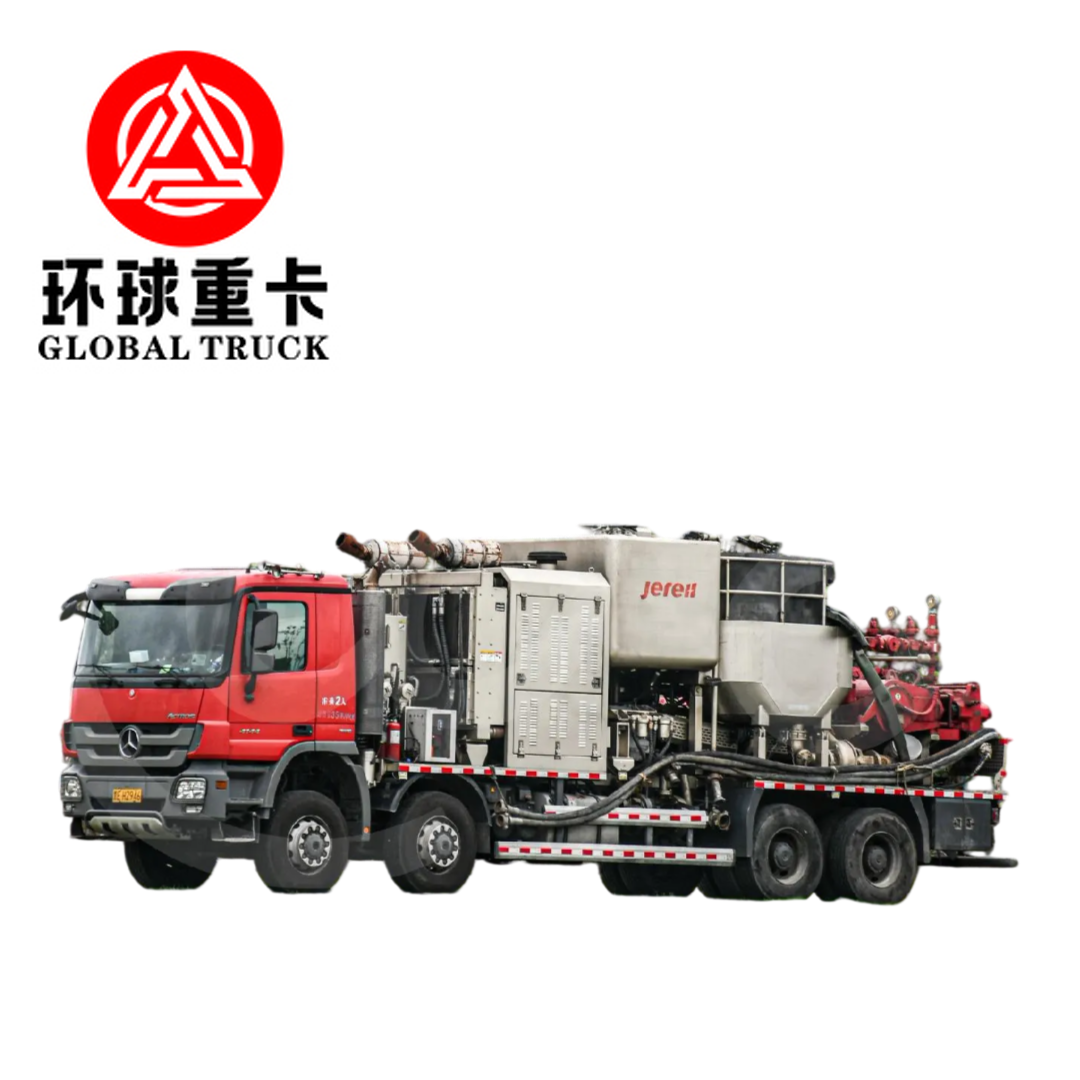

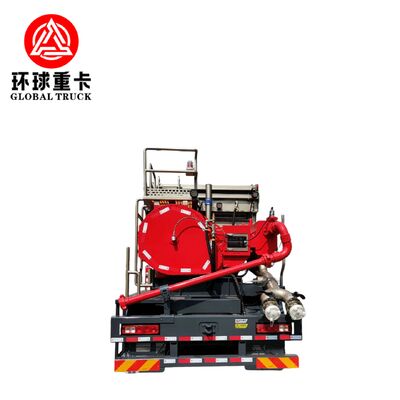

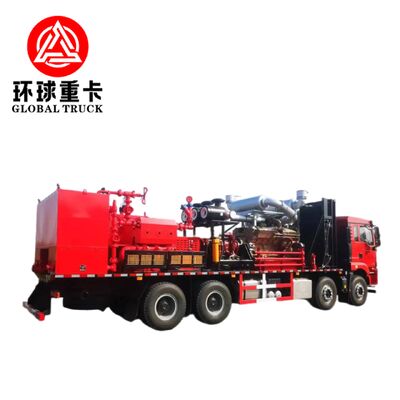

Name: Shacman 2500HP Oilfield Fracturing Truck with Euro 6 Emission Standard and Manual Transmission for High-Pressure Well Stimulation
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: شاحنة تكسير النفط
Price: 137,500.00 USD
Availability: InStock

منزل المنتجات شاحنة للاستعمالات الخاصة

Shacman 2500HP Oilfield Fracturing Truck with Euro 6 Emission Standard and Manual Transmission for High-Pressure Well Stimulation

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	DONGFENG
إصدار الشهادات:	CE
رقم الموديل:	شاحنة تكسير النفط

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 وحدة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	ناقص
وقت التسليم:	35 يوم عمل
شروط الدفع:	الاعتماد المستندي، تي/تي
القدرة على العرض:	50 قطعة / شهر

اتصل

مفصلة وصف المنتج

رقم الموديل:	2500 حصان	عجلة القيادة:	8×6
حصانا:	＞ 450HP	قوة:	ديزل
تصميم الإطارات:	لايحتاج	معيار الانبعاثات:	يورو 2
الانتقال:	ناقل الحركة 7601 ج	الحد الأقصى لإزاحة مضخة الغطاس:	1697 لتر/دقيقة
إبراز:	Euro 6 Emission Standard Oilfield Fracturing Truck,Manual Transmission Fracturing Mortar Tank Truck,2500HP Model Special Purpose Truck , Manual Transmission Fracturing Mortar Tank Truck , 2500HP Model Special Purpose Truck

Shacman Oilfield Fracturing Mortar Tank Truck

Diesel-Powered, Euro 6 Emission Standard, Manual Transmission - New Condition

Product Overview

The Shacman Oilfield Fracturing Mortar Tank Truck is a heavy-duty diesel vehicle engineered for high-pressure well stimulation in demanding oilfield operations. Built for rugged environments, it features a reinforced chassis, large-capacity mortar tank, diesel power system, and manual transmission. This Euro 6-compliant truck is ideal for delivering fracturing fluids, cement slurry, and other stimulation mortars in unconventional oil and gas resource extraction projects.

Chassis & Drive System

Drive Configuration: 6×4 or 8×6 options
Engine Power: 420-500 HP, Euro 6 diesel
Transmission: Manual heavy-duty gearbox
PTO: Engine-mounted power take-off for tank pumping
Axles: Reinforced for off-road and loaded conditions
Suspension: Heavy-duty leaf spring or air-assisted
Maximum Speed: 70-80 km/h
Operational Terrain: Desert, plateau, muddy, or rocky oilfield roads

The reinforced chassis ensures optimal stability while carrying heavy fracturing or cement slurry loads.

Mortar Tank & Fluid Handling System

Tank Capacity: 12-20 m³ (customizable)
Tank Material: High-strength steel with anti-corrosion epoxy lining
Tank Structure: Cylindrical or rectangular mortaring tank
Mixing Agitator: Diesel or hydraulic driven
Pumping System: High-pressure hydraulic pump for slurry delivery
Flow Rate: Adjustable according to well requirements
Bottom & Side Discharge Valves: Pneumatic or hydraulic control
Access: Anti-slip ladder and sealed inspection hatch

The system is engineered for stable mixing, smooth flow, and precise injection into oilfield wells.

Operational Features

Manual transmission enables precise torque control in rough terrain
Diesel power allows independent operation without external energy supply
PTO-driven pump delivers high-pressure mortar for fracturing or cementing
Euro 6 engine reduces emissions while maintaining high power output
Modular tank design supports multiple fluid types (water, cement slurry, chemical additives)

Safety & Protection Systems
