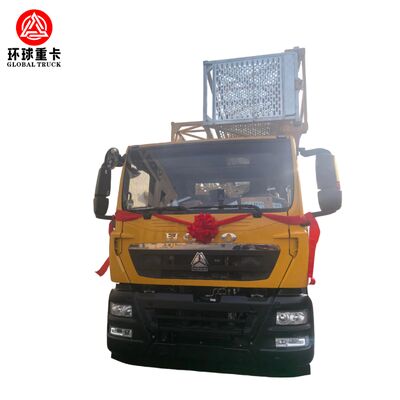

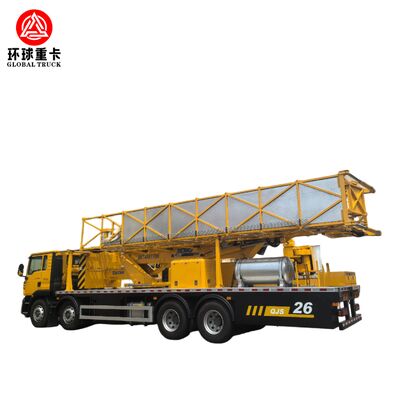

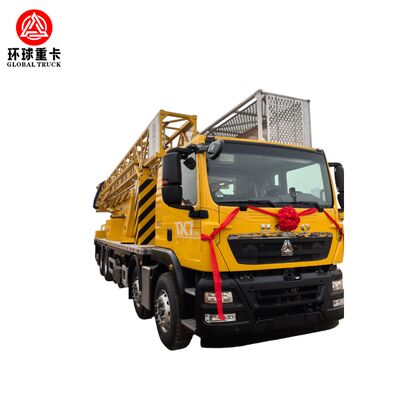

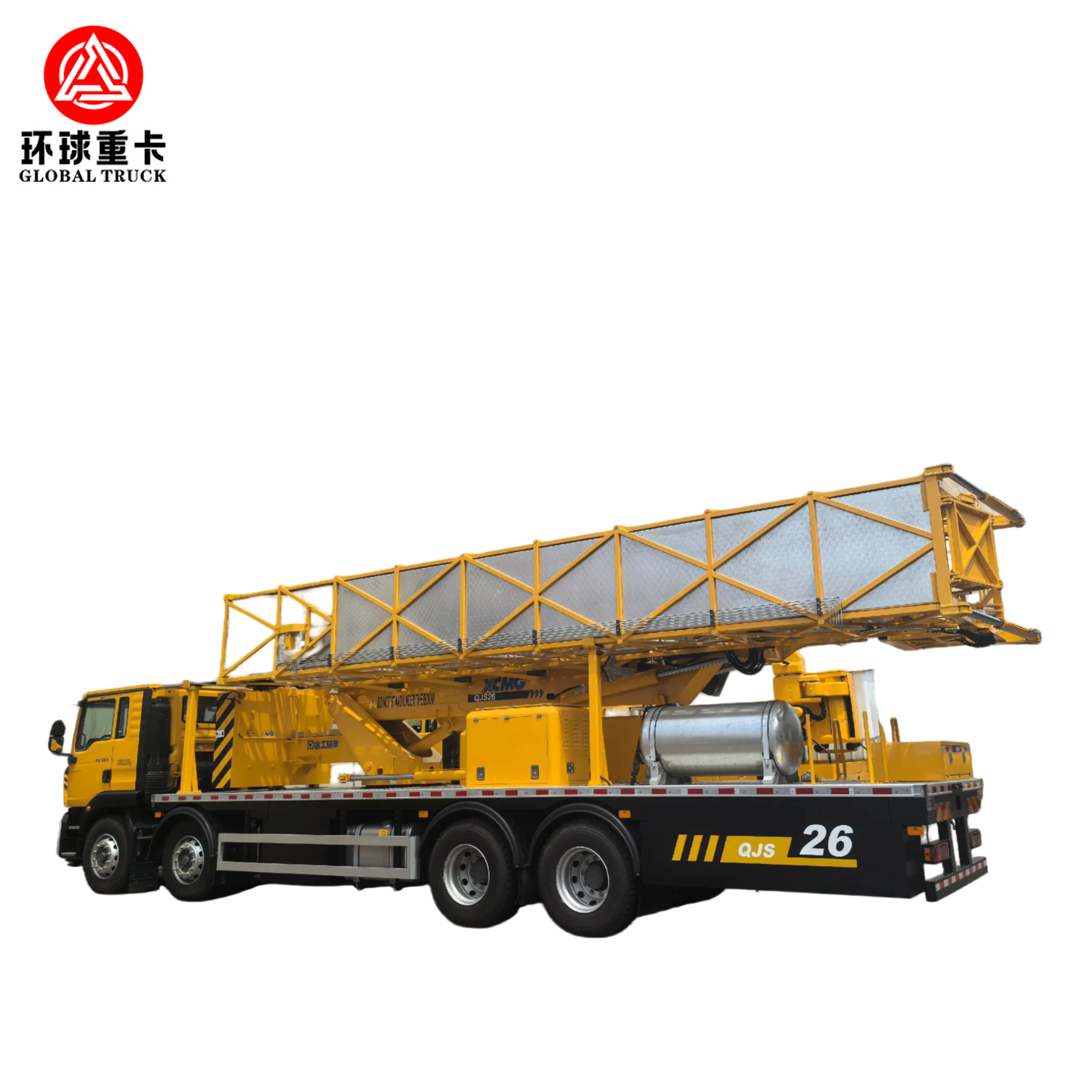

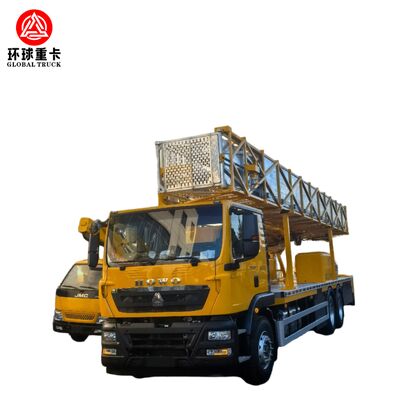

Bridge Inspection Truck with 16-22 Meters Working Height, 360° Continuous Rotation, and High Temperature Resistance for Tanzania

Advanced Under Bridge Access Platforms Designed for Precision Engineering Inspections and Critical Infrastructure Repairs

The Bridge Inspection Truck is specially designed to support road and bridge maintenance projects in Tanzania, where infrastructure development is growing rapidly.

With a strong chassis and reinforced hydraulic system, this vehicle is capable of operating in high-temperature environments and rough road conditions, making it highly suitable for both urban and remote construction sites.

It enables engineers to safely inspect and maintain bridges without traffic closure, improving work efficiency and project continuity.

• Chassis: HOWO / Shacman / Dongfeng (optional)
• Drive Type: 4×2 / 6×4 / 8×4
• Working Height: 16-22 meters
• Horizontal Reach: 15-20 meters
• Platform Load: 200-400 kg
• Platform Size: 1200 × 600 mm
• Boom System: Multi-section telescopic hydraulic boom
• Rotation: 360° continuous rotation
• Hydraulic System: Stable and responsive electro-hydraulic control
• Outriggers: 4-point hydraulic support with strong ground adaptability
• Control Mode: Dual operation (platform + ground control)
• Power Source: Engine PTO system
• Suitable Environment: High temperature, dusty, and uneven roads

• Built for Tough Roads: Reinforced structure suitable for African road conditions
• High Temperature Resistance: Reliable performance even in hot climate regions
• Improved Work Efficiency: No need for scaffolding or road closure
• Lower Maintenance Cost: Durable components reduce long-term repair costs
• Easy Operation: Simple control system suitable for local operators
• Flexible Customization: Configurable according to project and budget

• Bridge inspection and structural maintenance
• Highway and road authority maintenance projects
• Municipal infrastructure development
• Construction and engineering company projects
• Government infrastructure inspection programs
