| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | SHACMAN |
| إصدار الشهادات: | iso, |
| رقم الموديل: | شكمان F3000 |
| الحد الأدنى لكمية: | 1 جهاز كمبيوتر |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | ناقص |
| وقت التسليم: | 40 يوم العامل |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على العرض: | 500 وحدة / شهر |
| رقم الموديل: | Shacman F3000 6*4 Dump Truck | قوة حصان: | 420 حصان. |
|---|---|---|---|
| توجيه: | القيادة باليد اليسرى / اليمنى | عجلة القيادة: | 6 * 4 |
| نوع الجر: | HW19710 | مكيف الهواء: | مع |
| حالة: | جديد | مقعد القيادة: | مقعد معلق بالهواء |

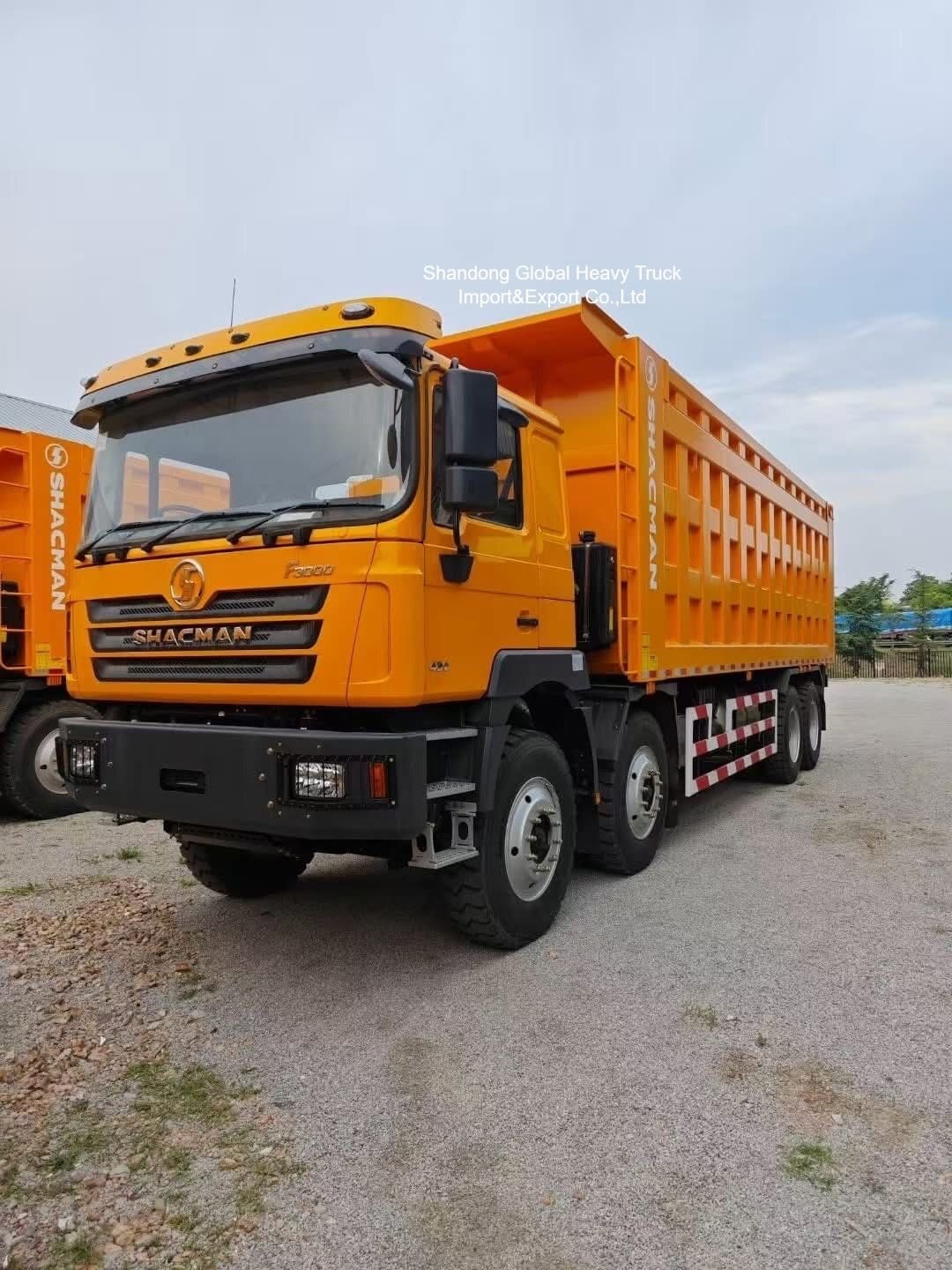

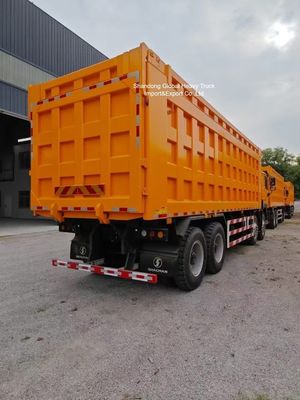

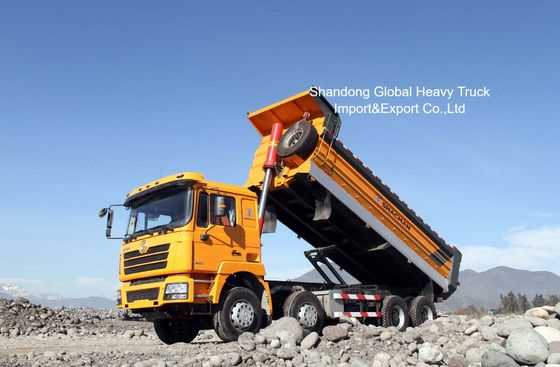

The Shacman F3000 8×4 Mining Dump Truck is engineered for demanding mining and quarry operations where high payload capacity, durability, and reliability are essential. Equipped with a powerful Weichai engine, reinforced frame, and heavy-duty dump body, this truck is built to handle continuous operation in challenging environments.
Whether transporting copper ore, gold ore, coal, aggregates, or construction materials, the F3000 delivers outstanding productivity and low operating costs.
| Item | Specification |
|---|---|
| Brand | Shacman |
| Model | F3000 |
| Drive Type | 8×4 |
| Engine | Weichai WP12 |
| Horsepower | 375HP / 400HP / 430HP |
| Transmission | FAST 12JSD200T |
| Front Axle | MAN 9.5T × 2 |
| Rear Axle | MAN 16T × 2 |
| Cargo Body Capacity | 30-45 CBM |
| Body Length | 7.6m-8.8m |
| Body Thickness | Bottom 8mm, Side 6mm |
| Fuel Tank | 400L |
| Tire Size | 12.00R20 |
| Cabin | F3000 Extended Sleeper Cabin |
| Air Conditioner | Standard |
| Maximum Speed | 75 km/h |
Built to withstand harsh mine roads, steep gradients, and heavy-duty workloads.
Large dump body allows transportation of more material per trip.
Manufactured using wear-resistant steel suitable for ore, rock, and aggregate transport.
Proven Weichai engine and FAST transmission ensure excellent performance and durability.
Easy maintenance and readily available spare parts help maximize uptime.
The 430HP engine with reinforced U-shaped mining body is highly recommended.
Yes. It is specifically designed for mining and quarry applications.
Ore, coal, stone, gravel, sand, limestone, and construction materials.
Yes. Additional reinforcement can be provided based on operating conditions.
Yes. Shacman parts are widely available across Africa.
Yes. SGS, BV, and other inspection agencies are accepted.
Normally 30-45 working days after order confirmation.
